kızaklı GÖGÜS PRESi (ÖN PRES)
![](/site/sized/70890/2022/06/492ab0468070e9ff4e1a7c7662177f1e-500x9000.webp)
![](/site/sized/70890/2022/06/2f047e764790c31ef10cad6d8a405e08-500x9000.webp)
![](/site/sized/70890/2022/06/4b3ede0ec0e91f0ca5bc7852b96a6748-500x9000.webp)
![](/site/sized/70890/2022/06/59752cb94774c7f5424f1dcc45c321e2-500x9000.webp)
![](/site/sized/70890/2022/06/3c457f15213580d4873371c1600d12e1-500x9000.webp)
![](/site/sized/70890/2022/06/e619e3112e576f43509a2fac210fa727-500x9000.webp)
![](/site/sized/70890/2022/06/25c573a435a4b620e85b6f2544d0f1d3-500x9000.webp)
![](/site/sized/70890/2022/06/64a2a342685bf3b948124d921ddedba4-500x9000.webp)
![](/site/sized/70890/2022/06/c88c36d1e4cbff4863f11631bf4717c9-500x9000.webp)
![](/site/sized/70890/2022/06/62c4890fd7b2e78780a5550517d724a6-500x9000.webp)
![](/site/sized/70890/2022/06/cf047e3f30132c48429222970cce35ce-500x9000.webp)
![](/site/sized/70890/2022/06/1975d5319fffc2b1494c428a300b15f8-500x9000.webp)
![](/site/sized/70890/2022/06/379f1f0de9751ac8572097b17c793c9c-500x9000.webp)
![](/site/sized/70890/2022/06/49d928d805952df9619a0a7f0e00eef3-500x9000.webp)
![](/site/sized/70890/2022/06/e9b7c1b210cb2f7e5a92c0741e7d79ff-500x9000.webp)
![](/site/sized/70890/2022/06/e9fd46b3ff698a9124e66ea167f698c2-500x9000.webp)
![](/site/sized/70890/2022/06/858b83c43cea48680f5e77e299fa460e-500x9000.webp)
![](/site/sized/70890/2022/06/470a007744d36d39d21d48c58d5bba7d-500x9000.webp)
![](/site/sized/70890/2022/06/3e6a5ddd6d20a4daa634ce4f580954be-500x9000.webp)
![](/site/sized/70890/2022/06/17b9c174cabc42a832172e608ab4e469-500x9000.webp)
![](/site/sized/70890/2022/06/52861b016f5c0e66547ecb982af022ef-500x9000.webp)
![](/site/sized/70890/2022/06/823125af9f236bf1c0f253484892bc3e-500x9000.webp)
![](/site/sized/70890/2022/06/fdf676f3cb0a87f0585735ee56d98a37-500x9000.webp)
![](/site/sized/70890/2022/06/1c5f5888e89741f496a27a36818826b5-500x9000.webp)
![](/site/sized/70890/2022/06/d9dea9c7f76af3fd9a03e6adba17ba16-500x9000.webp)
ROLINGPRES |

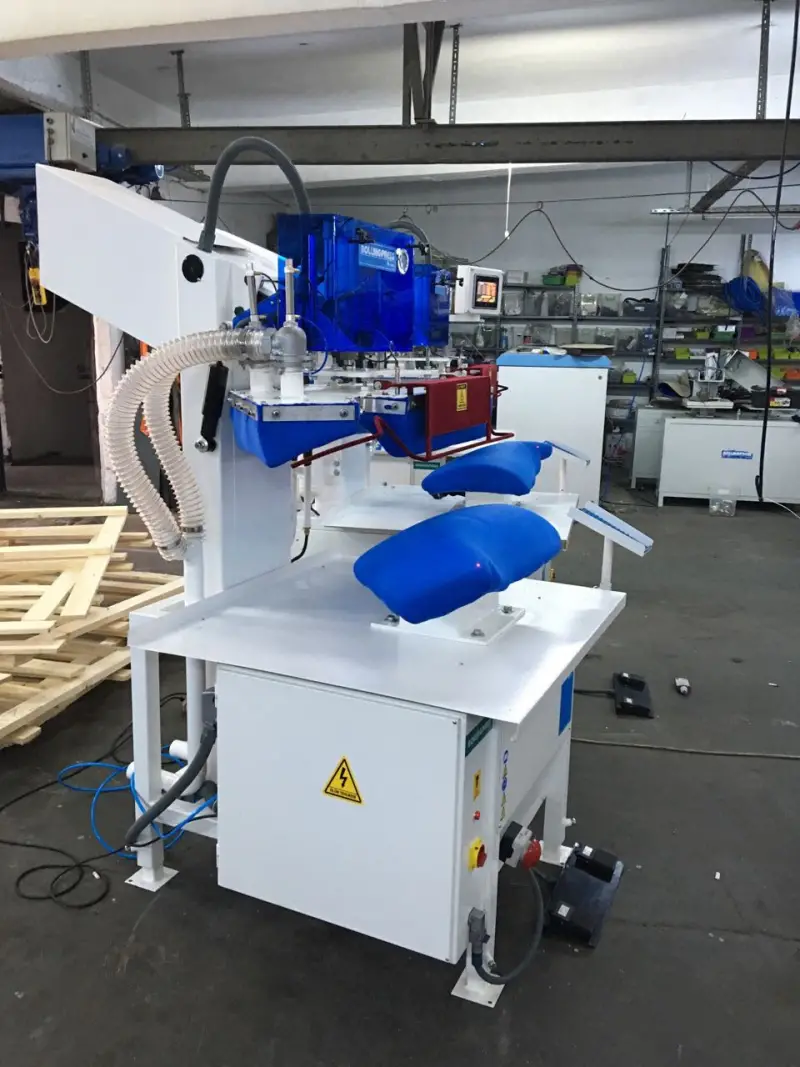

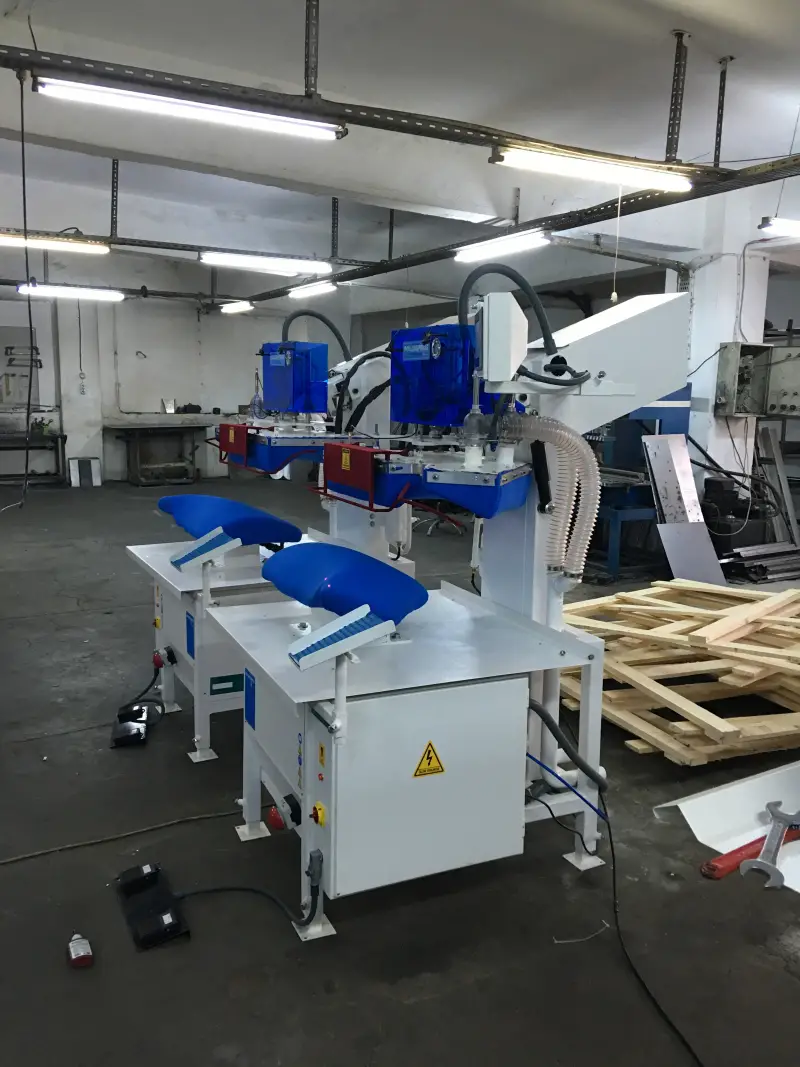

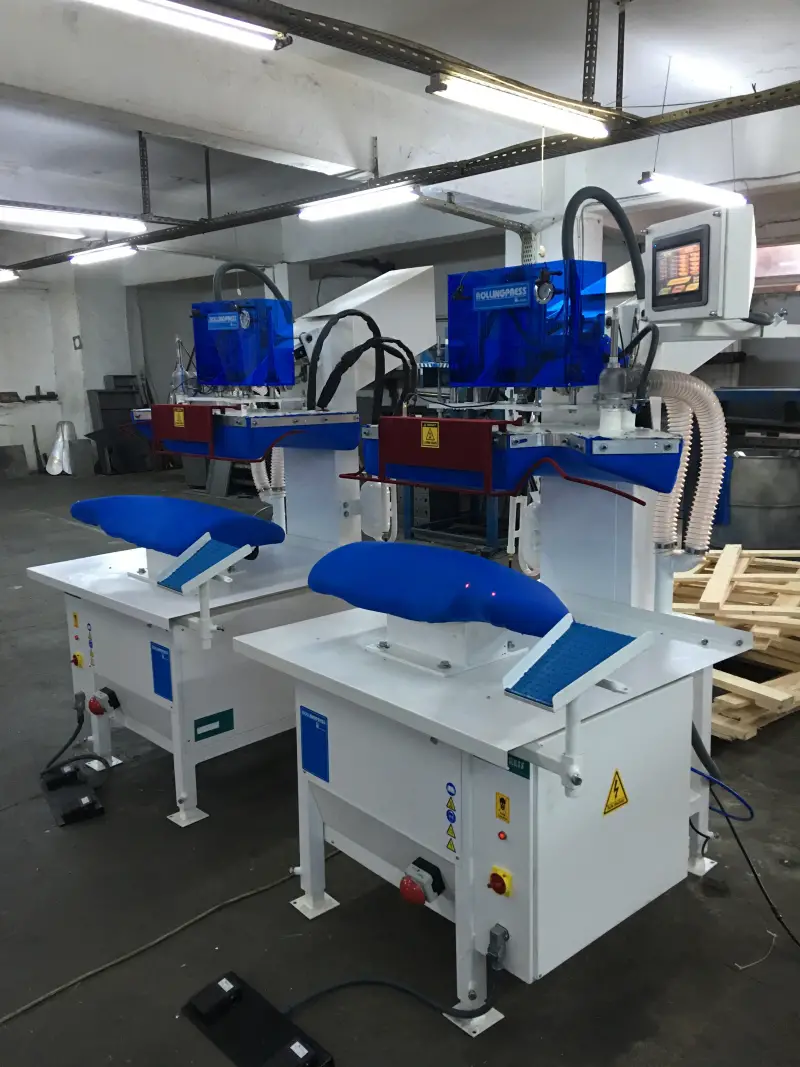

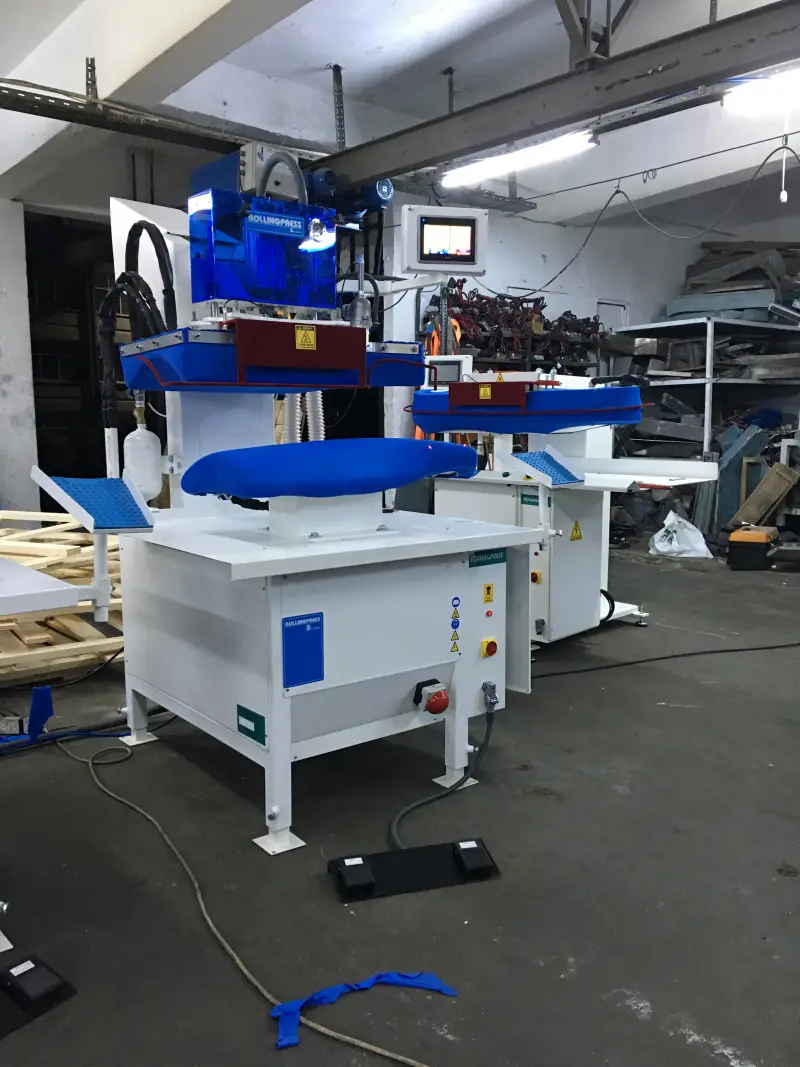

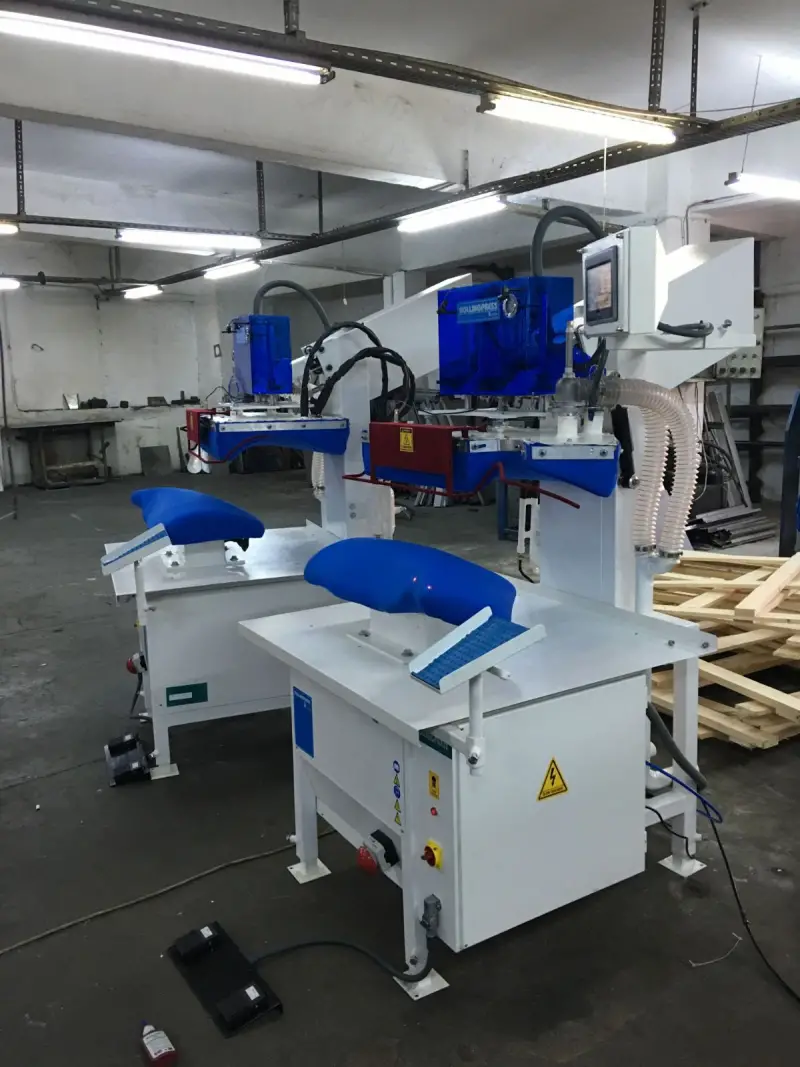

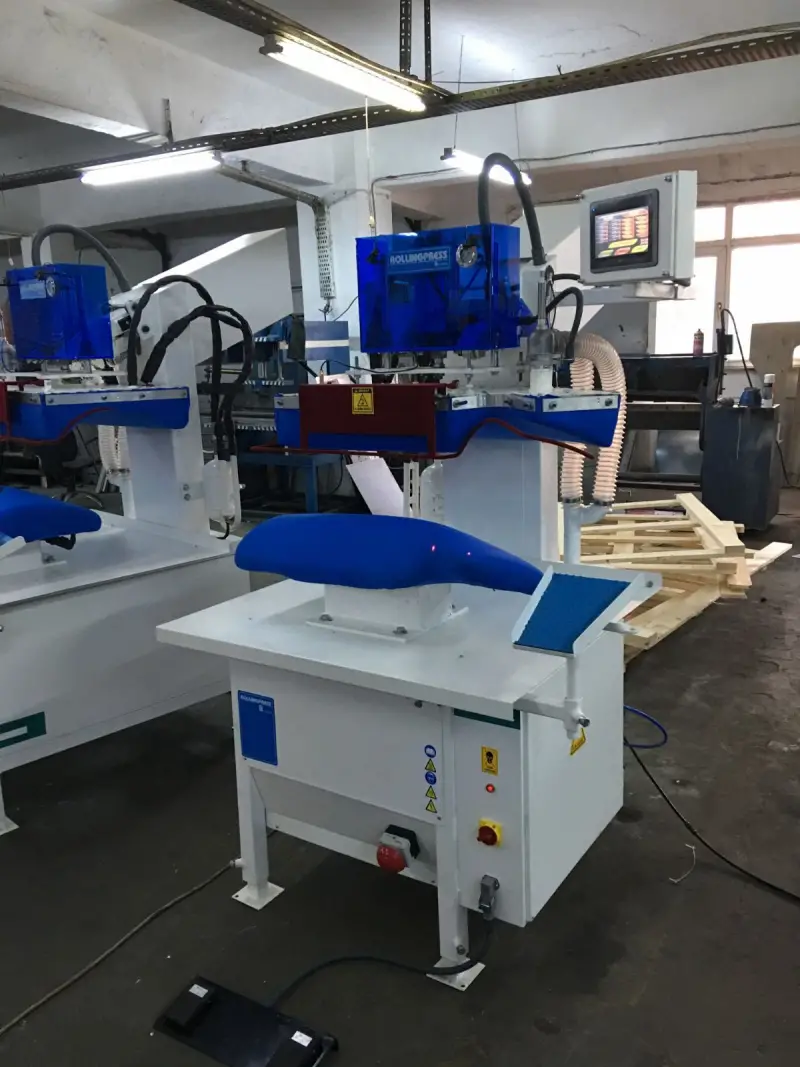

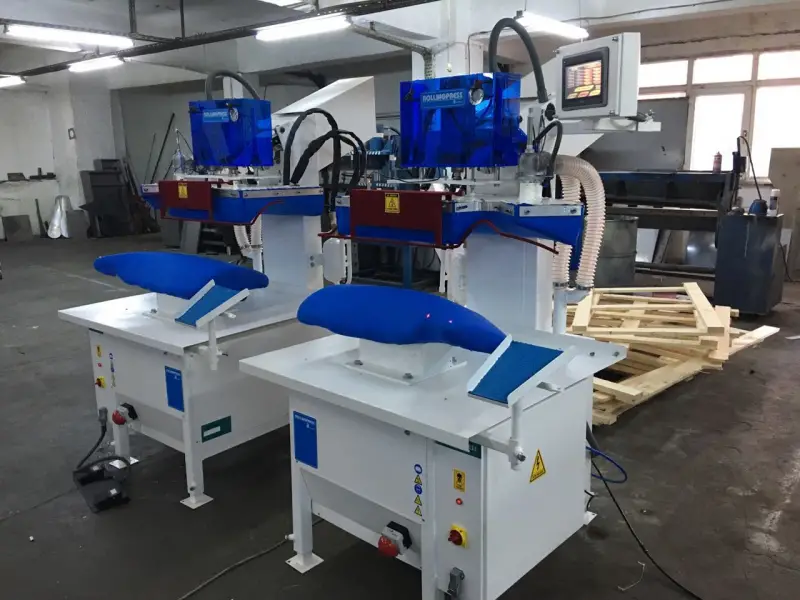

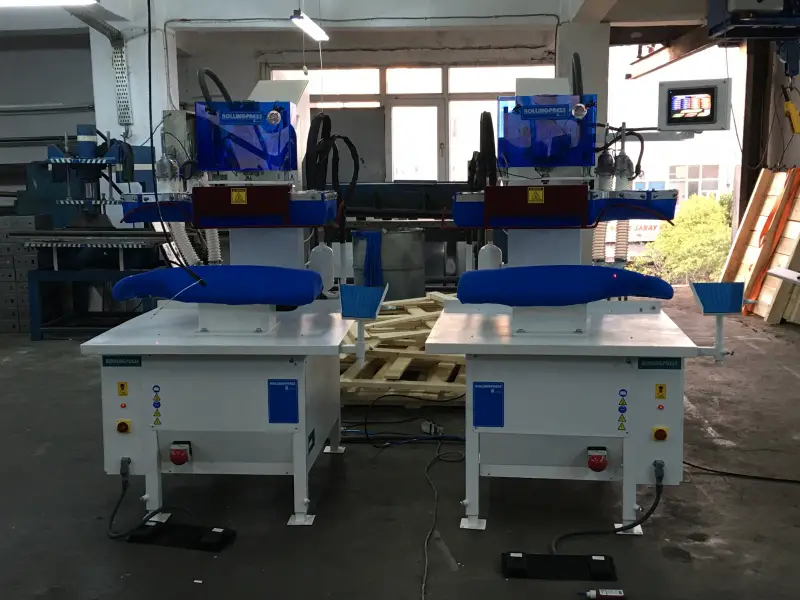

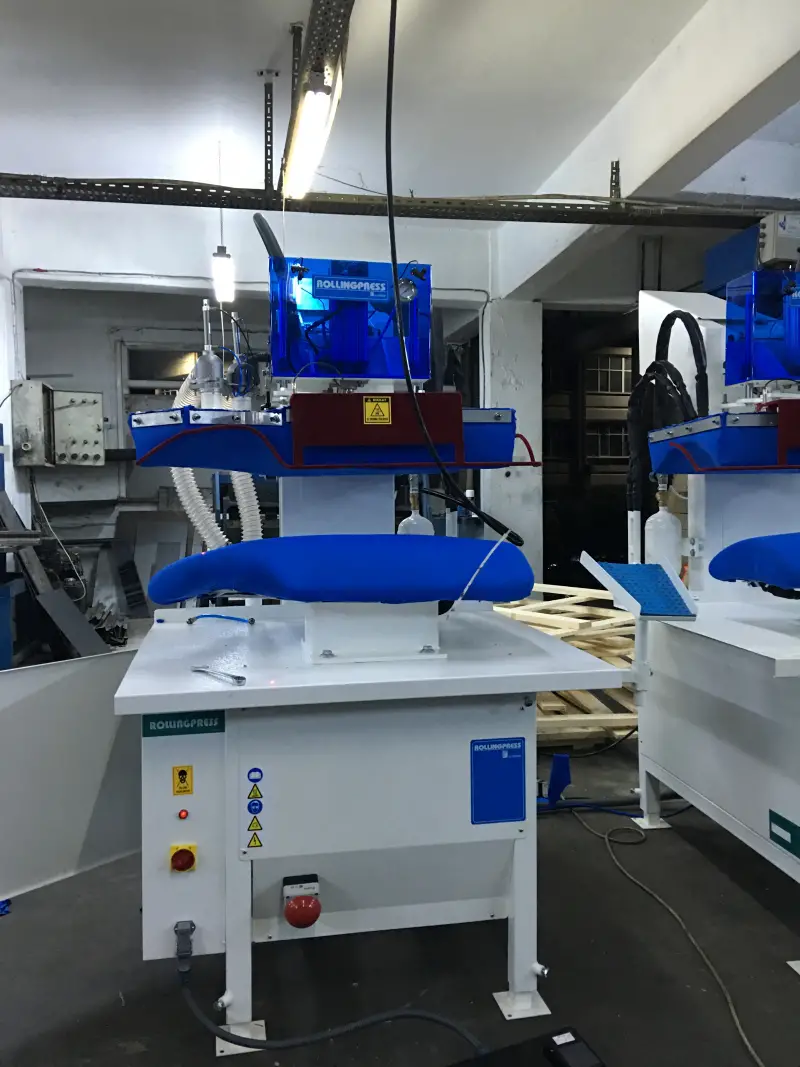

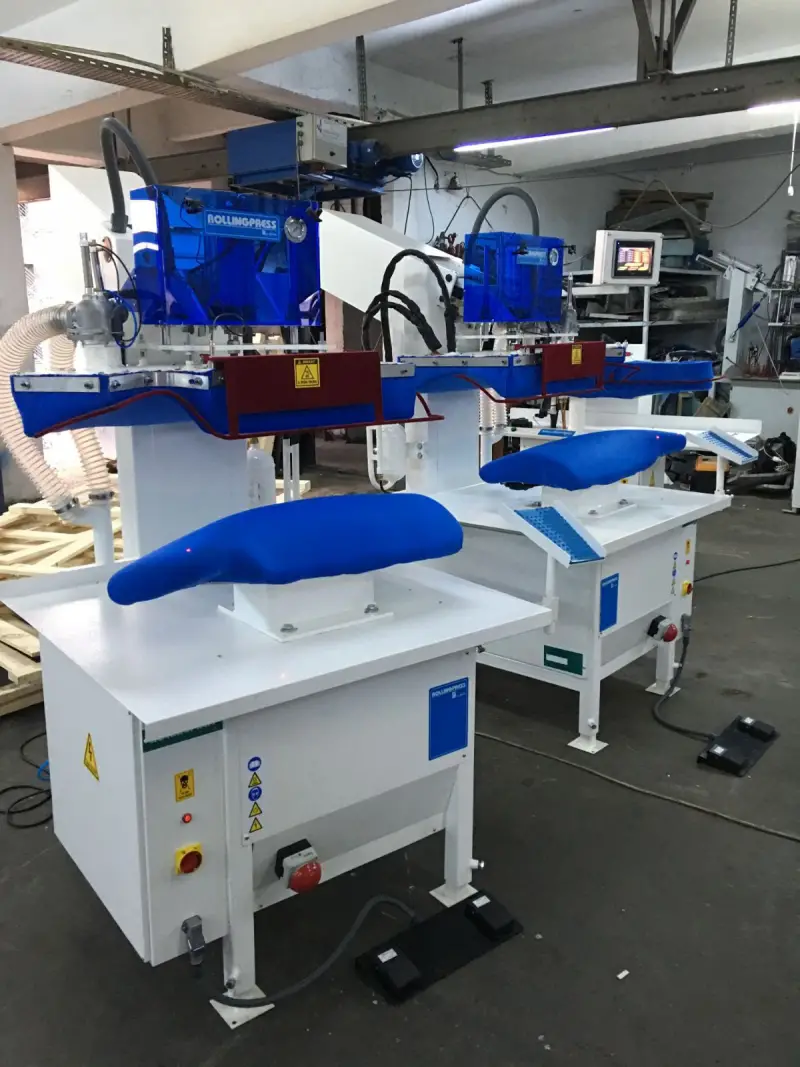

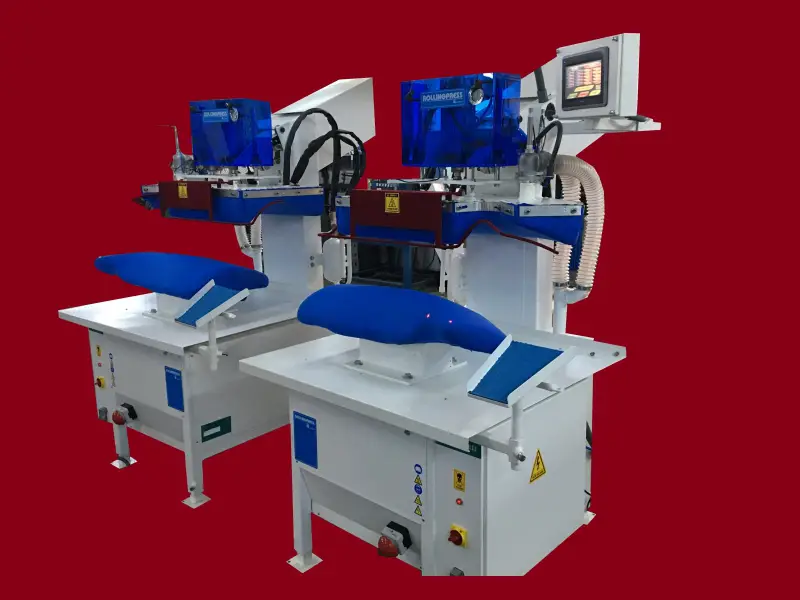

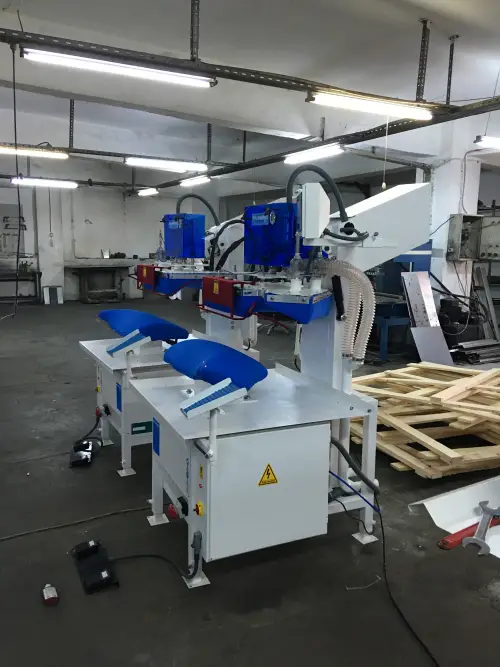

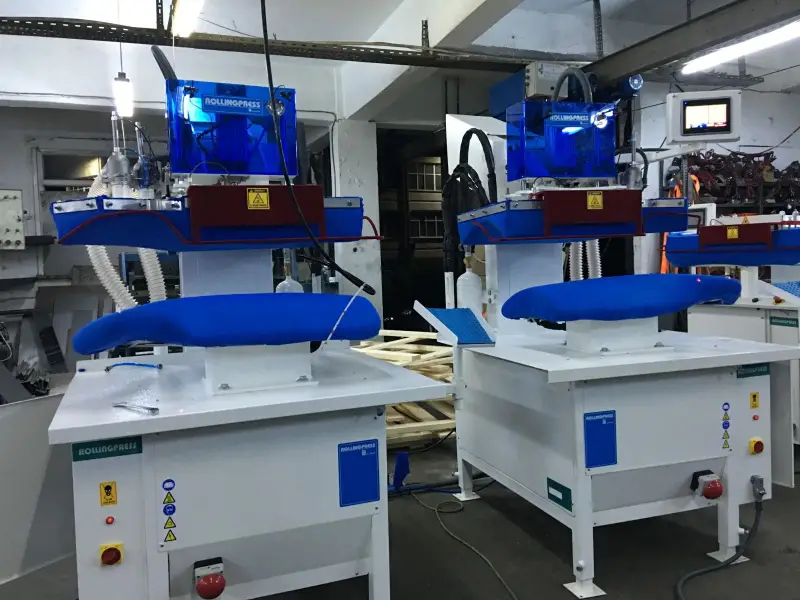

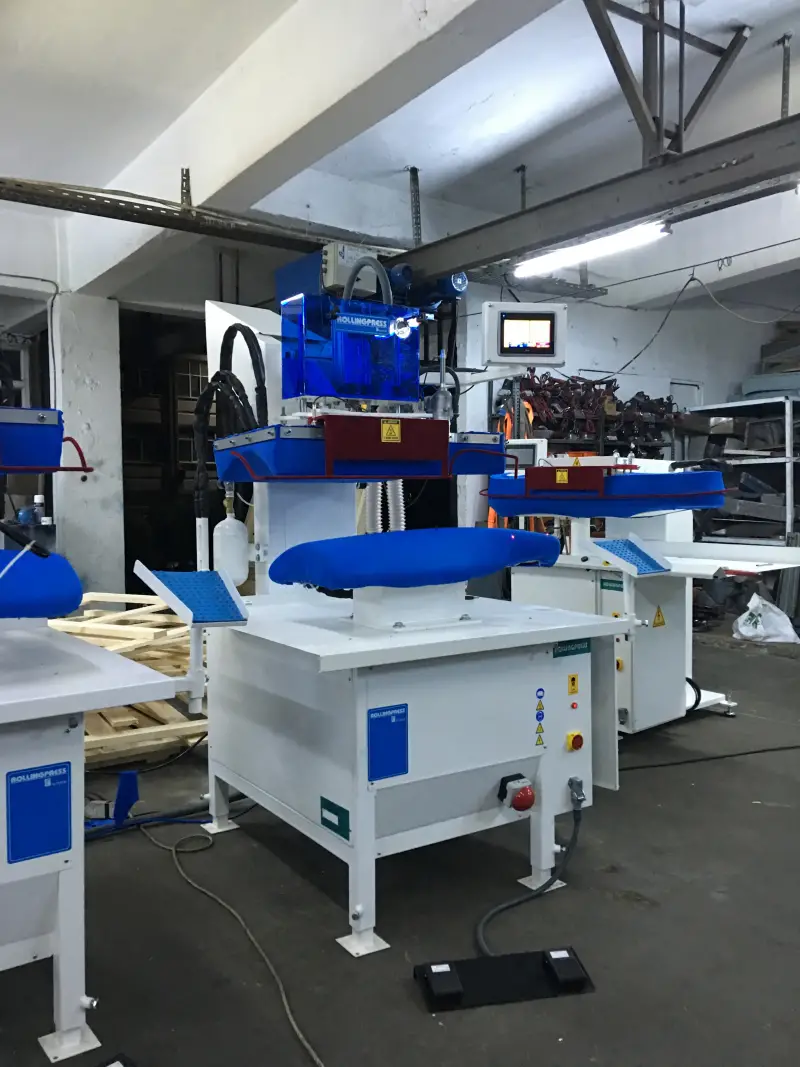

RL 1015 FRONT PRESS(LEFT-RIGHT) 8451,30,000000 |

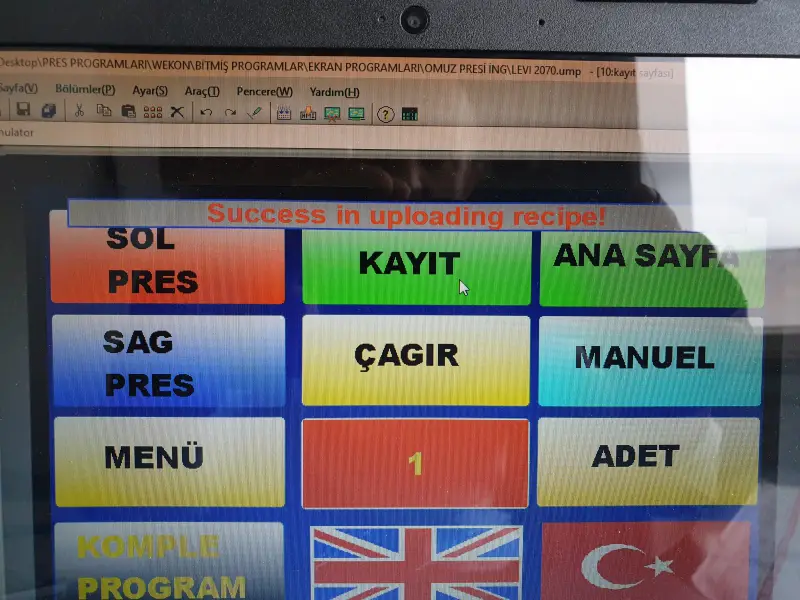

* Microprocessor controlled with digital screen. * Runs with central system steam, vacuum and air. * 220 V monophase. * Adjustable upper and lower vacuum time. * Adjustable pressure, timer for bucks-closed mode. * Large size (buck dimensions:400x250x1230mm) Technical Info Capacity (pcs/h) 40-60 Electric (V) 230 Heater Power (kW) Motor Power (kW) Pump Power (kW) Steam inlet (") ½ Steam Outlet (") ½ Air inlet (") 1/2" Vacuum inlet (") 2" Steam Cosumption (kg/h) 20 Air cosumption (L/min) 12 Steam Pressure (bar) 5 - 6. Air pressure (bar) 5 - 6. Net Weight (kg) 275 Gross Weight (kg) 320 Net Dimensions (cm) 140x105x180 Gross Dimensions (cm) 150x110x185 production date: 01.05.2021
|
|
